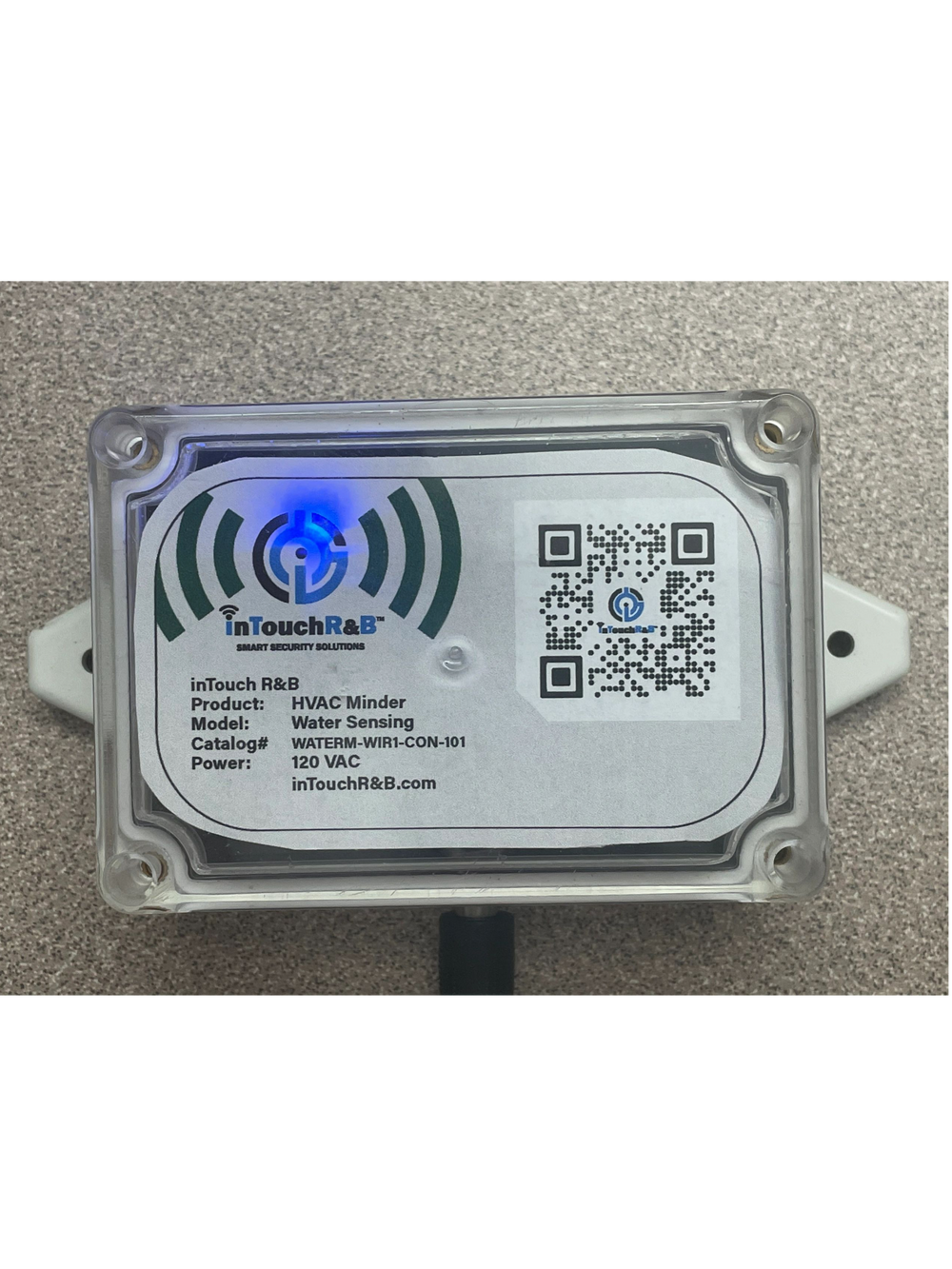

inTouch R&B

HVAC Minder

$269.00
  • HVAC Minder

inTouch R&B

HVAC Minder

$269.00
1

The inTouch R&B HVAC Minder Features:

 Event Detected               Action Taken
High Water Level
Email/Text event message sent indicating a potential condensate drain failure and flood situation due to High Water Level.
Loss of AC Power
Email/Text event message sent indicating a loss of AC power.
Return of AC Power
Email/Text event message sent indicating the return of AC Power.
High Humidity

Low Humidity

High Temperature
Low Temperature
Email/Text event message sent indicating Relative Humidity is above user configured high humidity alarm.  Potential environment for mold growth.
Email/Text event message sent indicating Relative Humidity is below user configured low humidity alarm.  Potential environment for mold growth.
Email/Text event message sent indicating Temperature is above user configured high Temperature alarm.
Email/Text event message sent indicating Temperature is below user configured low temperature alarm, guarding against frozen pipes.

Included in the Email/Text event message at the time of the event is:

Included in the Email/Text event message at the time of the event is:

HVAC Minder internal Battery Voltage.

Relative Humidity.
High and Low Relative Humidity for the Hour/Day.
Temperature in degrees “F or “C.
High and Low Temperature in degrees “F or “C for the Hour/Day.
Heat Index in degrees “F or “C.
Dew Point in degrees “F or “C, guarding against mold growth.

-----------------------

An example of what an email HVAC Minder alert is:

4th Floor 4B Condo HVAC Minder at High Water Level Alert

Email Alert: HVAC Minder High @ Water Level

Time: 02:07:40 PM, Date: 5/24/2024
4th Floor 4B Condo High Water is:
- Currently at High Water level level and 3 previous High Water events.

HVAC Minder:

HVAC Minder Pump has:
- Relative Humidity @ 44.90%
     High Alarm 90.00 Deg F.  Low Alarm 30.00%
- Temperature 79.16 Deg F.
     High Alarm 90 Deg F.        Low Alarm 40.00 Deg F.
- Heat Index 78.89 Deg F., Dew Point 55.97 Deg F.
- Cycled 13 times this month and 6 times last month.
CPU Voltage @ 97.12 %

User Configuration:

Connected to AP: UnAvailable, IP Address: 192.168.248.174, RSSI: -64 dBm
HVAC Minder Name or Location: 4th Floor 4B Condo
Email Address: 4th Floor4BCondo@gmail.com Secondary Email Address: None
EMail Server: smtp.gmail.com; LED Brightness: 100%
Hourly Update,, Alert Delay is 0 Minutes.
Device ID: HVACMinder_CC:50:E3:3C:A0:D3
Bilge Minder Firmware: BilgeMinderTsT.ino Ver 0.02

Firmware Updated:

Firmware: Ver 0.02

Terms and Conditions:

You have agreed to inTouch R & B's Terms and Conditions Policy. If you do NOT agree, discontinue its use. This email was sent securely via an encrypted mail link.


This email or text message can not only be sent to you as the owner but it can also be sent to an additional person or look after your investment.


Installation & Users Manual HVAC Minder Voltage

Can be Ordered in a

                                    (1)    Pack

                                    (3)    Pack.  5% Discount

                                    (5)    Pack.  10% Discount

                                    (10)  Pack   15% Discount

                                Can NOT be used with any other Discounts

Bilge Pump Monitoring

You will have access to monitor your Bilge Pump Activity, Boat Voltage, GPS Location with GEO Fencing and High Water Sensor

Monitor your RV Temperature & 120 VAC

Instant alert if you: go below or above your temperature Set Points. Or loose your 120 VAC Power

Activate your LED lighting on your Boat or RV with your Voice

Turn your LED’s on with your voice and controlling the intensity of the LEDs
